Full Set of PureH2O Filter only for $1899 + sales tax included.
Get the complete PureH2O Filter set, now available for only $1899, including sales tax. With this all-inclusive package, you’ll receive everything you need to enjoy clean, refreshing water right from your tap for one full year!
Don’t miss out on this incredible offer to elevate your hydration experience and ensure the health and well-being of your family. Upgrade to PureH2O today and experience the difference in water quality firsthand.
Technical Specifications
Full flow of water in PureH2O Water Filter
- 3.2 Gallons NSF Standards Storage Tank.
- Complete stage osmosis water filter system

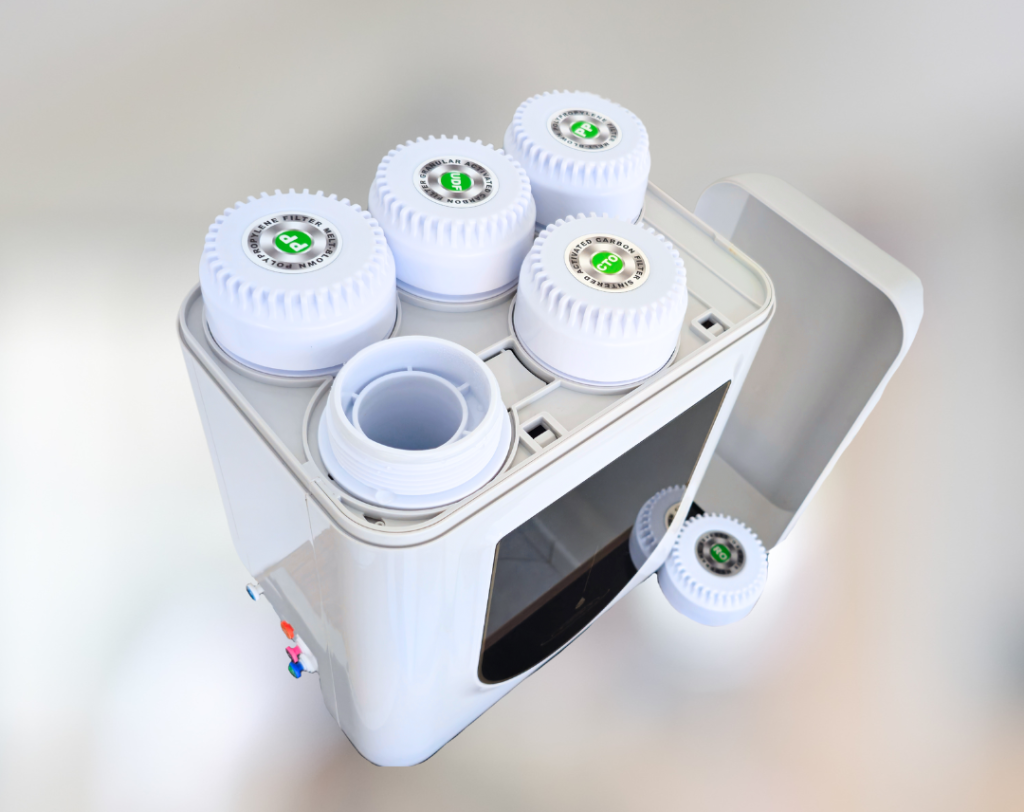

- Easy-open lid for cartridge filters replaced.
- Use inline filter makes filter changes fast, and easy.
- Automatic Shut-off Valve
- Flow Restrictor, Stainless Check Valve.
Valve that fits onto the cold water supply line. The valve has a tube that attaches to the inlet side of the RO pre filter. This is the water source for the RO system.
Water from the cold water supply line enters the Reverse Osmosis Pre Filter first. There may be more than one pre-filter used in a Reverse Osmosis system, the most common being sediment and carbon filters. These pre-filters are used to PROTECT the RO membranes by removing sand silt, dirt, and other sediment that could clog the system. Additionally, carbon filters may be used to remove chlorine, which can damage the RO membranes.
The Reverse Osmosis Membrane is the heart of the system. The semipermeable RO membrane is designed to remove a wide variety of both aesthetic and health-related contaminants. After passing through the membrane, the water goes into a pressurized storage tank where treated water is stored.
After the water leaves the RO storage tank, but before going to the RO faucet, the treated water goes through a final “post filter”. The post filter is usually a carbon filter. Any remaining tastes or odors are removed from the product water by post filtration “polishing” filter.
To conserve water, the RO system has an automatic shut off valve. When the storage tank is full, the automatic shut off valve closes to stop any more water from entering the membrane and blocks flow to the drain. Once water is drawn from the RO faucet, the pressure in the tank drops; the shut off valve then opens to send the drinking water through the membrane while the contaminated wastewater is diverted down the drain.
A check valve is located in the outlet end of the RO membrane housing. The check valve prevents the backward flow of treated water from the RO storage tank. A backward flow could rupture the RO membrane.
Water flowing through the RO membrane is regulated by a flow restrictor. There are many different styles of flow controls, but their common purpose is to maintain the flow rate required to obtain the highest quality drinking water (based on the gallon capacity of the membrane). The flow restrictor also helps maintain pressure on the inlet side of the membrane. Without the additional pressure from the flow control, very little drinking water would be produced because all the incoming water would take the path of least resistance and simply flow down the drain line. The flow control is most often located in the RO drain line tubing.
The standard RO storage tank holds from 2 – 4 gallons of water. A bladder inside the tank keeps water pressurized in the tank when it is full. The typical under counter Reverse Osmosis tank is 12 inches in diameter and 15 inches tall.
The RO unit uses its own faucet, which is usually installed on the kitchen sink. Some areas have plumbing regulations requiring an air gap faucet, but non-air gap models are more common.
This line runs from the outlet end of the Reverse Osmosis membrane housing to the drain. The drain line is used to dispose of the wastewater containing the impurities and contaminants that have been filtered out by the reverse osmosis membrane.
